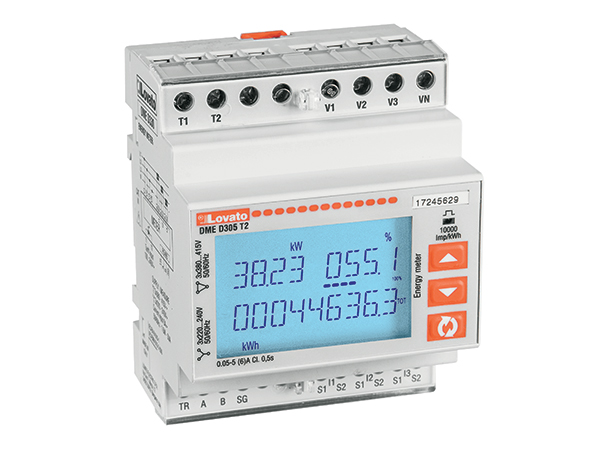

DMED305T2
Energy meter, three-phase with or without neutral, non expandable, connection by CT /5A secondary, 4U, 2 programmable static output, multi-measurements
Type of product:Energy meters - Three-phase
Type of installation:DIN rail mounting
Type of current connection:CT /5A /1AIEC maximum current (Imax) [A]:5
Type of energy measurement:Imported/exported active energy and imported/exported reactive energy
Accuracy active energy measurement:Class 0.5s (IEC/EN 62053-22)
Reactive energy:Class 2 (IEC/EN 62053-23)
Current harmonic analysis:No
Built-in communication port:No
Expandable:No
MID certified:No
