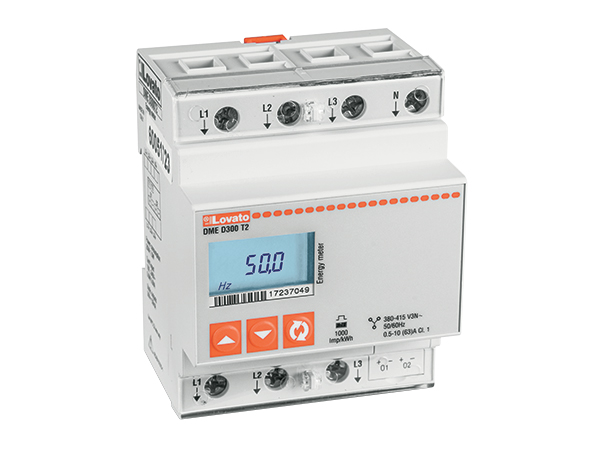

DMED300T2

DMED300T2

Energy meter, three-phase with neutral, non expandable, 80A direct connection, 4U, 2 programmable static outputs, multi-measurements

Type of product:Energy meters - Three-phase

Type of installation:DIN rail mounting

Type of current connection:Direct

IEC maximum current (Imax) [A]:80

Type of energy measurement:Imported/exported active energy and imported/exported reactive energy

Accuracy active energy measurement:Class 1 (IEC/EN 62053-21)

Reactive energy:Class 2 (IEC/EN 62053-23)

Current harmonic analysis:No

Built-in communication port:No

Expandable:No

MID certified:No
