BESS.EGV-IAF

ESS & BESS Solutions

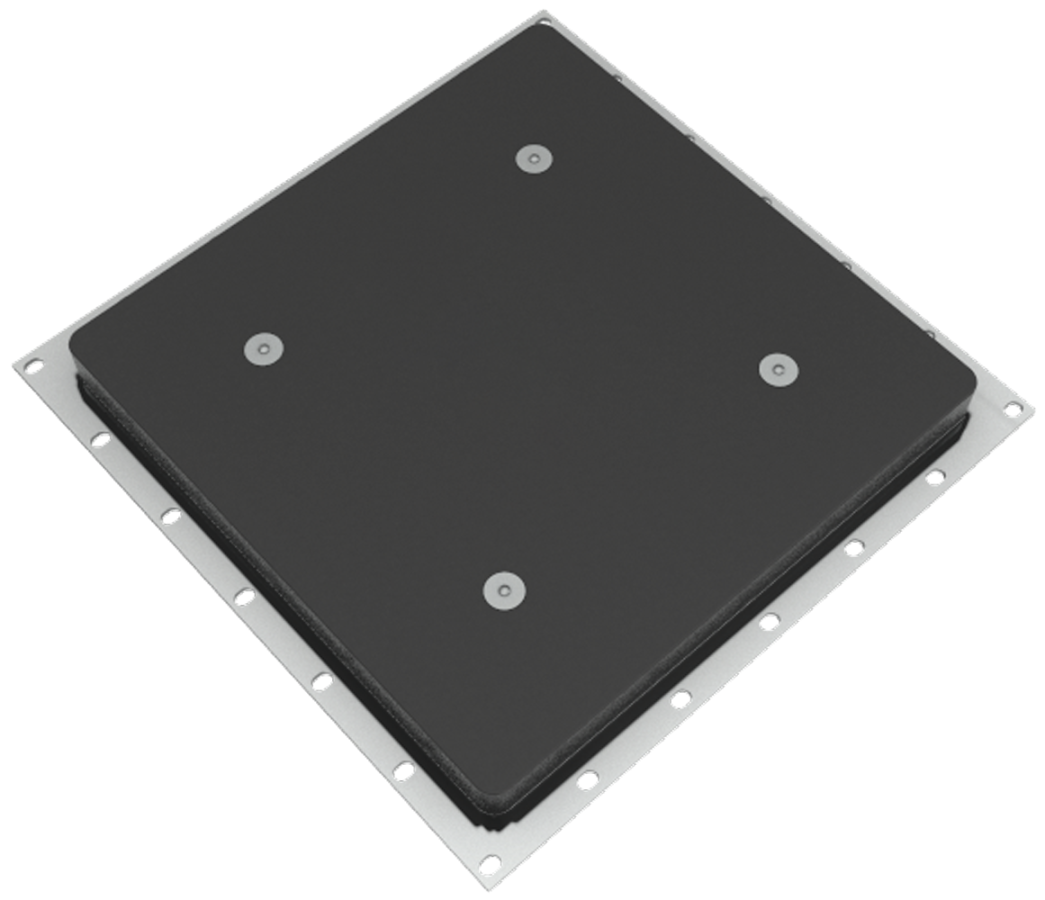

BESS.EGV-IAF

BESS.EGV-IAF

Roof-mounted vent panel with interior insulation.


BESS.EGV-IAF offers proven EGV deflagration venting performance with insulation placed on the inside of the panel, facing the BESS interior. Insulation properties can be customised to suit any BESS design.






Application
BESS.EGV-IAF is the most economical solution for deflagration venting when insulation is needed. Panels are installed on the BESS roof and vent deflagrations upward to a safe location. The standard burst pressure is 0.1 bar at 22 °C (71.6°F), but can be modified to suit any BESS design, as low as 0.025 bar.
Mechanism
When pressure rises during a deflagration, the vent opens at the defined breaking point and releases pressure out of the BESS into the surrounding area.



Advantages

  • High venting capacity and full bore opening due to low surface weight.

  • High stability and opening speed through integrated bionic structure.

  • Adapts perfectly to your BESS due to the wide range of EGV geometries available.

  • Quick and easy installation as EGV is torque independent. No additional counter frame required.

  • Significant space savings due to the integrated gasket and frame in the explosion vent.

  • Flexible insulation options.






Product parameters


Burst pressure Pstat
25-500 mbar
Max. permitted operating pressure
50 % of Pstat
Temperature
–40 to +180°C (–40 to +356°F)
Material
Stainless steel
Gasket material
FDA approved silicon gasket
Tolerance
± 20 % at standard burst pressure
Recommended torque for M10 screws
20 Nm
Insulation
FEF
Fire rating of insulation
UL 94 V 0
Insulation thickness
25-100 mm
Insulation properties
λ=0.035 W/m*K
