ESS & BESS Solutions

첨단 안전 솔루션으로 에너지 저장 시스템을 보호합니다.
인증된 방폭 및 전기 안전 제품을 통해 안정적인 ESS·BESS 운영을 지원합니다.


Protecting Energy Storage Systems with Advanced Safety Solutions.
Delivering certified explosion protection and electrical safety products

for reliable ESS & BESS operation.

BESS.EGV

ESS & BESS Solutions

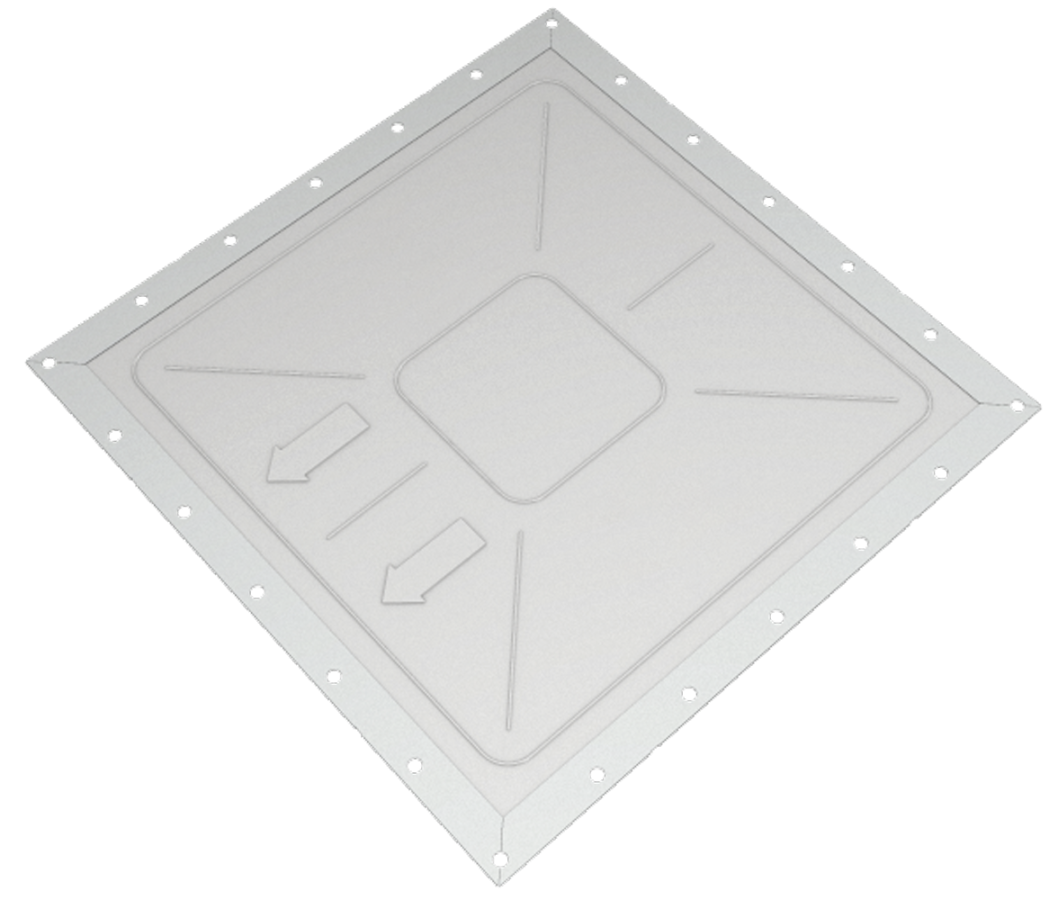

BESS.EGV

Roof-mounted deflagration venting as the most economical solution.


The REMBE® explosion vent BESS.EGV offers optimum protection for your Battery Energy Storage Systems (BESS). BESS.EGV is available in a range of geometries with customisable burst pressures.



Application
BESS.EGV is suitable for use in a wide range of BESS applications where roof installation is preferred. The standard burst pressure is 0.1 bar at 22 °C (71.6°F), but can be modified to suit any BESS design, as low as 0.025 bar.



Advantages

  • High venting capacity and full bore opening due to low surface weight.

  • High stability and opening speed through integrated bionic structure.

  • Adapts perfectly to your BESS due to the wide range of EGV geometries available.

  • Quick and easy installation as EGV is torque independent. No additional counter frame required.

  • Significant space savings due to the integrated gasket and frame in the explosion vent.



  • Product parameters


    Standard burst pressure Pstat
    25-500 mbar
    Max. permitted operating pressure
    50 % of Pstat
    Temperature
    – 40 to + 180 °C (– 40 to + 356 °F)
    Material
    Stainless steel
    Gasket material
    FDA approved silicon gasket
    Tolerance
    ± 20 % at standard burst pressure
    Recommended torque for M10 screws
    20 Nm



공백 없이 입력하세요.
BESS.EGV-IAF NDM2ZX-125
