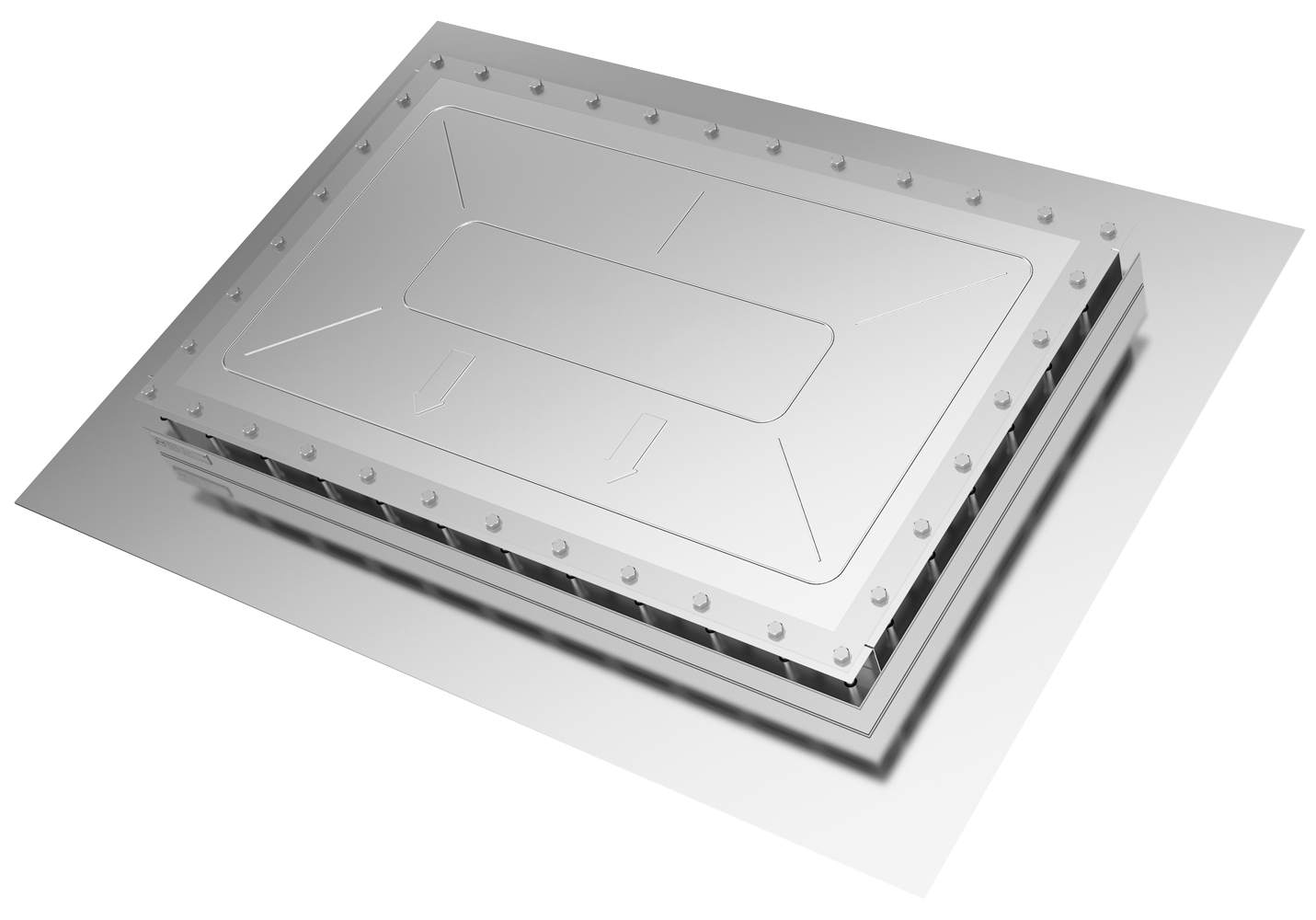

BESS.Q.Vent

As the pioneer of flameless venting technology, REMBE® has engineered the first flameless vent for battery energy storage systems.

BESS.Q.Vent extinguishes the flame and minimises external temperature and pressure effects. It can protect both indoor and outdoor BESS and can be installed on BESS roofs or side-walls.

Application

BESS.Q.Vent is ideal for protecting BESS located indoors, or outdoor BESS in sensitive environments where flame exit and pressure effects are not acceptable.

Advantages

Flame absorber.
Reduced safety area.
Wall or roof installation at BESS.
Uniquely slim profile: Blends in with the container wall, allows containers to be stacked.
Maintenance-free.
Reduction of external explosion pressures.
Suitable for indoor installation of the BESS.

Burst pressure Pstat	25-100 mbar
Max. permitted operating pressure	50 % of Pstat
Temperature	–40 to +180 °C (–40 to +356°F)
Material	Stainless steel
Gasket material	FDA approved silicon gasket
Tolerance	± 20 % at standard burst pressure
Recommended torque for M10 screws	20 Nm
Insulation	FEF
Fire rating of insulation	UL 94 V 0
Insulation thickness	25-100 mm
Insulation properties	λ= 0.035 W/m*K
